YFT-Z submersible claw hydraulic valve test bench

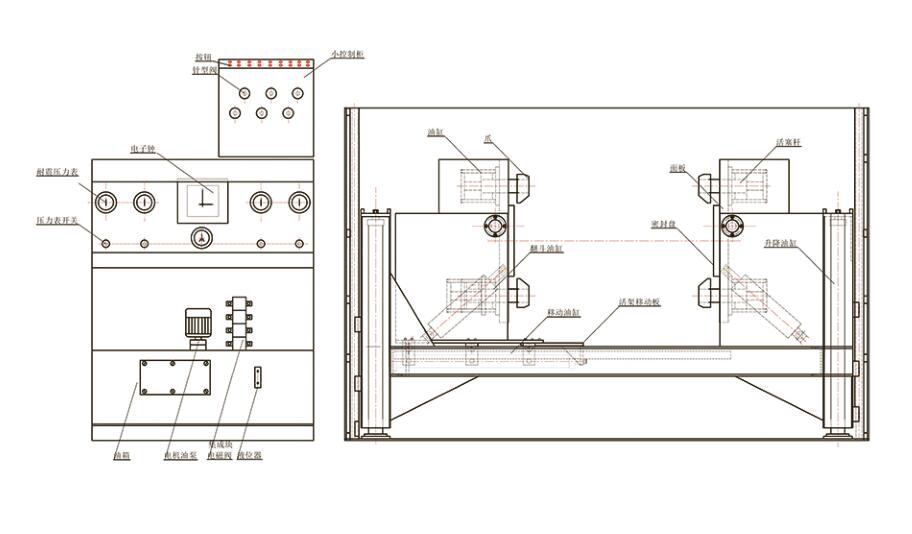

YFT-Z series has two parts: control part and clamp part(water tank). The whole claws clamp part can be submerged into water, it is controlled by hydraulic system.
- Phone : +86-0577-67317333
- Tel : +86-13676483251
- Email : yongye.hydraulic@gmail.com
- Fax : +86-577-67310059
Technical performance and feature:
1. YFT-Z series has two parts: control part and clamp part(water tank). The whole claws clamp part can be submerged into water, it is controlled by hydraulic system.
2. YFT-Z series hydraulic valve test bench is suitable for flange valve's shell test, seal test and back seal test.
3. Using claws to hold the flange, so there's no external force effects on the test valve.,which is in accord with the requirements of GB/T13927-92,JB/T9092-99 and API598.
4. Left and right workbench both can be turned over 90 degrees, for the convenience of carrying valve and seal test.
5. Test medium can be chosen by user, water, air or kerosene.
6. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
7. Water and hydraulic oil can be cycle used.
8. The test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of test bench.
9. PLC control, touch screen display pressure diagram and printer system is optional.
