YFT Model Claws Holding Valve Test Bench
YFT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flanged valves.
- Phone : +86-0577-67317333
- Tel : +86-13676483251
- Email : yongye.hydraulic@gmail.com
- Fax : +86-577-67310059
Technical performance and feature:
1. YFT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flanged valves.
2. Adopts the sealing method of flange blind plates and uses claws to hold the flange end,so there is no external force on the tested valves. which is in accord with the requirements of GB/T13927-92,JB/T9092-99 and API598.

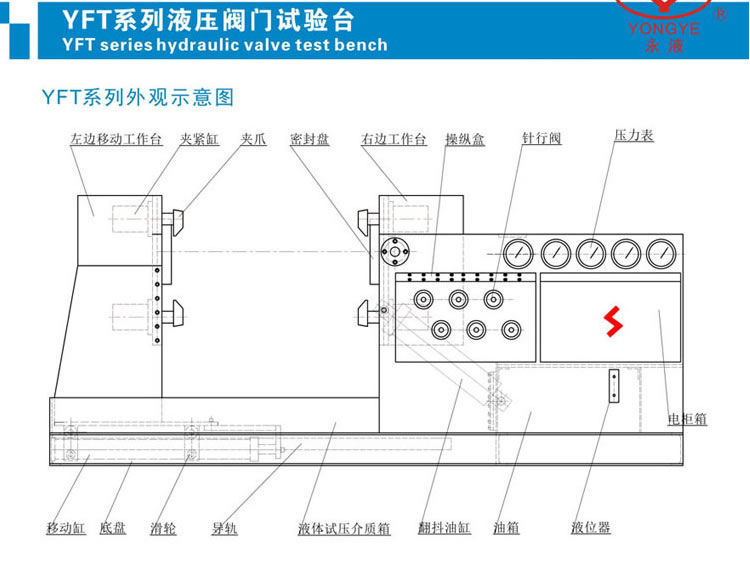

3.The right workbench can be turned over 90 degrees for the convenience of carrying valve and seal test.
4.Test medium can be chosen by user,it can be water,air or kerosene.
5.Test bench has low pressure water pump and water booster.There is an air connection reserved for air pump.
6.Water and hydraulic oil can be cycle used.
7.The test bench has an automatic oil pressure discharge system.When using it,the high pressure condition and the relief pressure condition can be changed by iself.So it can reduce oil temperature,elongate the life of valve test bench.
8.PLC control,touch screen display pressure diagram and printer system is optional.
9.Safety door is optional.
1. YFT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flanged valves.
2. Adopts the sealing method of flange blind plates and uses claws to hold the flange end,so there is no external force on the tested valves. which is in accord with the requirements of GB/T13927-92,JB/T9092-99 and API598.
3.The right workbench can be turned over 90 degrees for the convenience of carrying valve and seal test.
4.Test medium can be chosen by user,it can be water,air or kerosene.
5.Test bench has low pressure water pump and water booster.There is an air connection reserved for air pump.
6.Water and hydraulic oil can be cycle used.
7.The test bench has an automatic oil pressure discharge system.When using it,the high pressure condition and the relief pressure condition can be changed by iself.So it can reduce oil temperature,elongate the life of valve test bench.
8.PLC control,touch screen display pressure diagram and printer system is optional.
9.Safety door is optional.
YFT Model Claws Holding Valve Test Bench
YFT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flangedvalves.
20 Years Focus On Valve Pressure Testing Equipment
YFT serie hydraulic valve test bench suitable for flange valve’s shell test, seal test and back seal test.

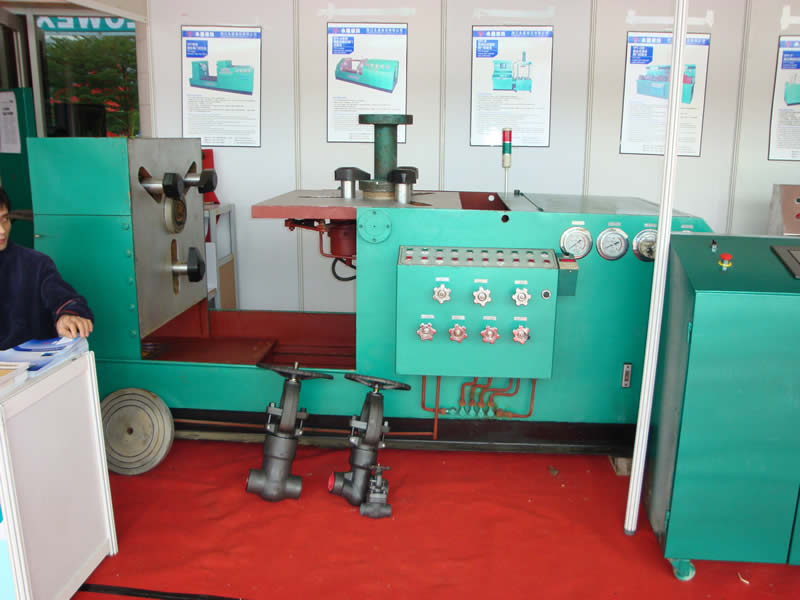

Claws Holding Valve Test Bench,Seal Test (Exhibition)
